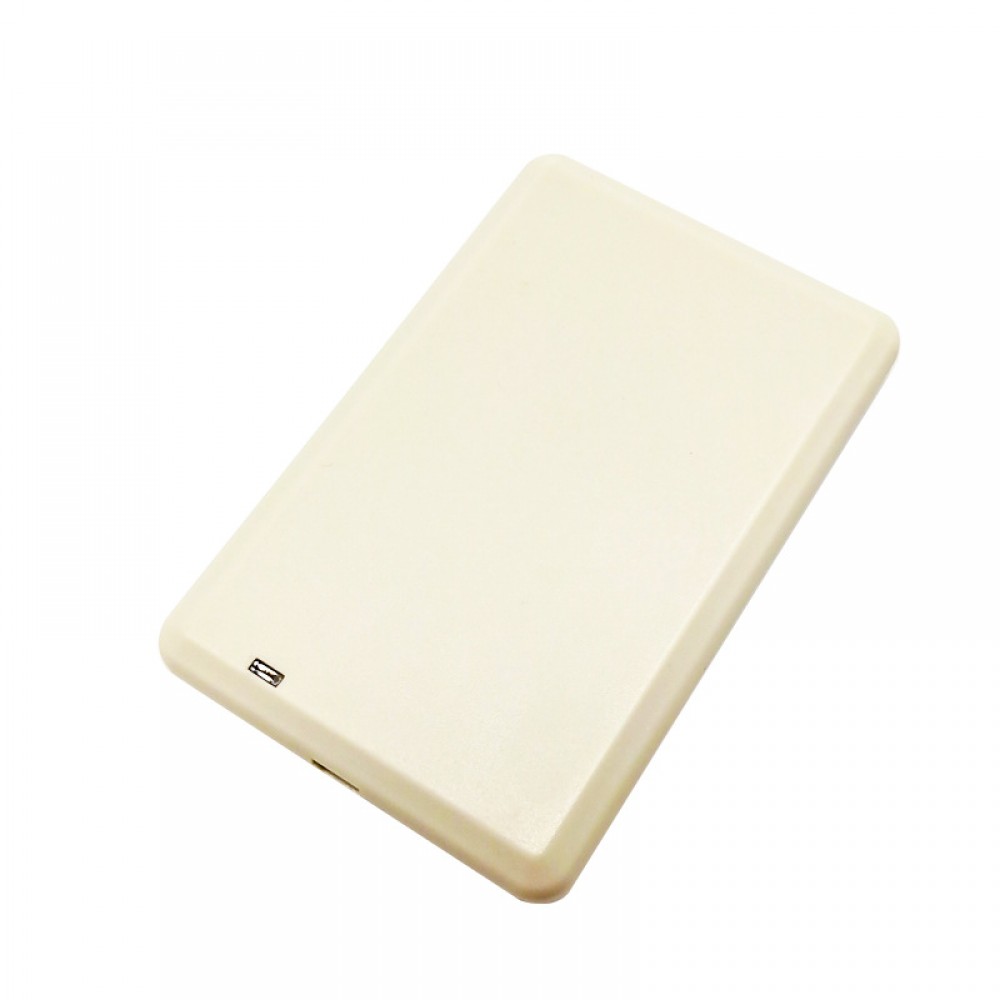

Good EPC encoding machine USB drive free SDK logistics warehouse door security UHF RFID desktop reader writer
Overview
PerformanceProduct nameUHF RFID Desktop readerModelADR-05RF output power0-17dBm (adjustable by software)Frequency865-868mhz or 902-928mhzAir interface...Performance | |
Product name | UHF RFID Desktop reader |
Model | ADR-05 |
RF output power | 0-17dBm (adjustable by software) |
Frequency | 865-868mhz or 902-928mhz |
Air interface protocol | EPC global UHF Class 1 gen 2/ISO 18000-6C |
LED light | Red and green |
Communication interface | Type-C USB2.0, DC 5V, |
Buzzer | Yes |
Power supply | USB |
Application software interface | Free API SDK (DLL, C++,C#,VB,Delphi,Linux) |
Read distance | 0~40cm(related to tag and environment) |
Write distance | 0~20cm |
Power consumption | 1w |
Antenna shell material | PVC |
Color | Grey white |
Reading speed | 100 times/sec |
Net weight | 80g |
Size | 105*70*11mm |
Package size | 35*42*11cm |
Working Environment | |
Operating humidity | 5%～95% non-condensing |
Working temperature | -10℃~+60℃ |
Storage temperature | -25℃~+85℃ |
Operation system | Windows OS |
