Ultra high frequency RFID electronic tag dual hole 8m reading distance PCB anti metal tag
$0.50
Ex Tax: $0.50
Product Code: T-9525
Stock Instock
Overview
1. PerformanceProduct nameUHF RFID PCB Anti-metal TagModel nameT-9525ProtocolEPC global Class 1 gen 2/ISO 18000-6CMaterialPCBFrequency860-960mhzMounti...
1.
Performance | |
Product name | UHF RFID PCB Anti-metal Tag |
Model name | T-9525 |
Protocol | EPC global Class 1 gen 2/ISO 18000-6C |
Material | PCB |
Frequency | 860-960mhz |
Mounting method | Screw, rivet, 3M adhesive installation |
Work mode | Read and write |
Size | 95*25*3.6mm |
Package size | 20*15*10cm |
Chip type | NXP U8, U9, H3, H9, Impinj M4QT ( cutomized optional) |
Memory | EPC code 96 bits; expand to 512 bits available |
Warranty | 1 year |
Reading distance | ＞18 meters (related to reader performance) |
Storage time | ＞10 years |
Rewrittable times | ＞100,000 times |
Working Environment | |

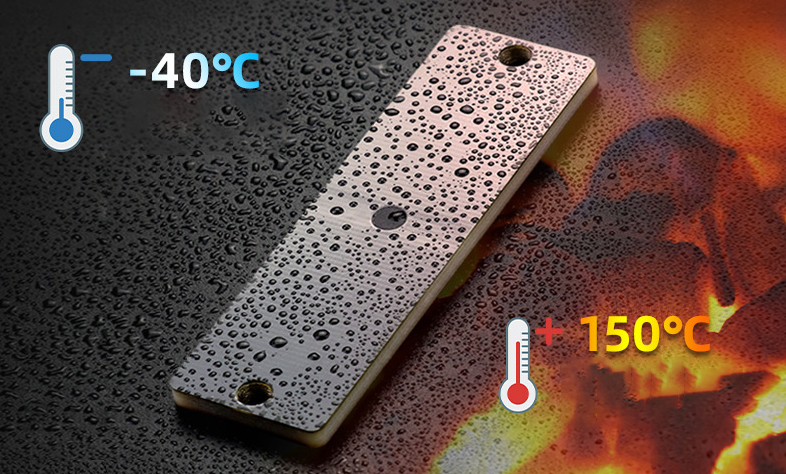

Working temperature | -20℃~+100℃ |
Storage temperature | -40℃~+150℃ |
Storage humidity | 20%～90% relative humidity |
Application | Pallet, shelf, warehouse logistics,asset, equipment inspection, production process, chemimal, etc. |
