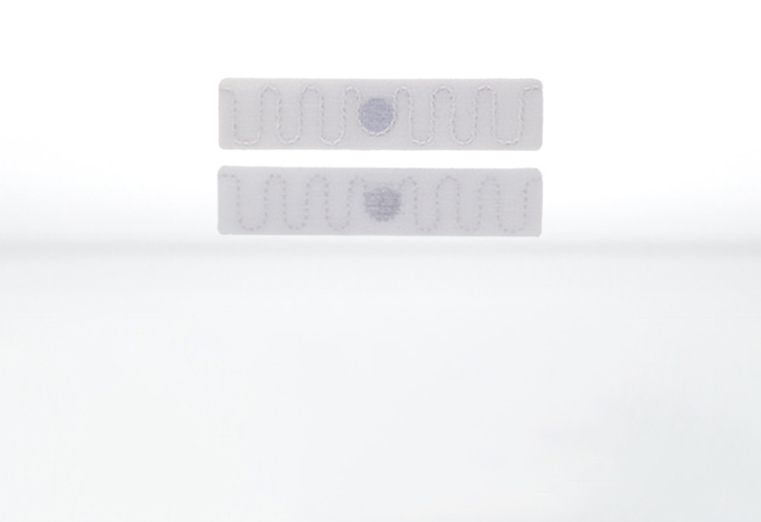

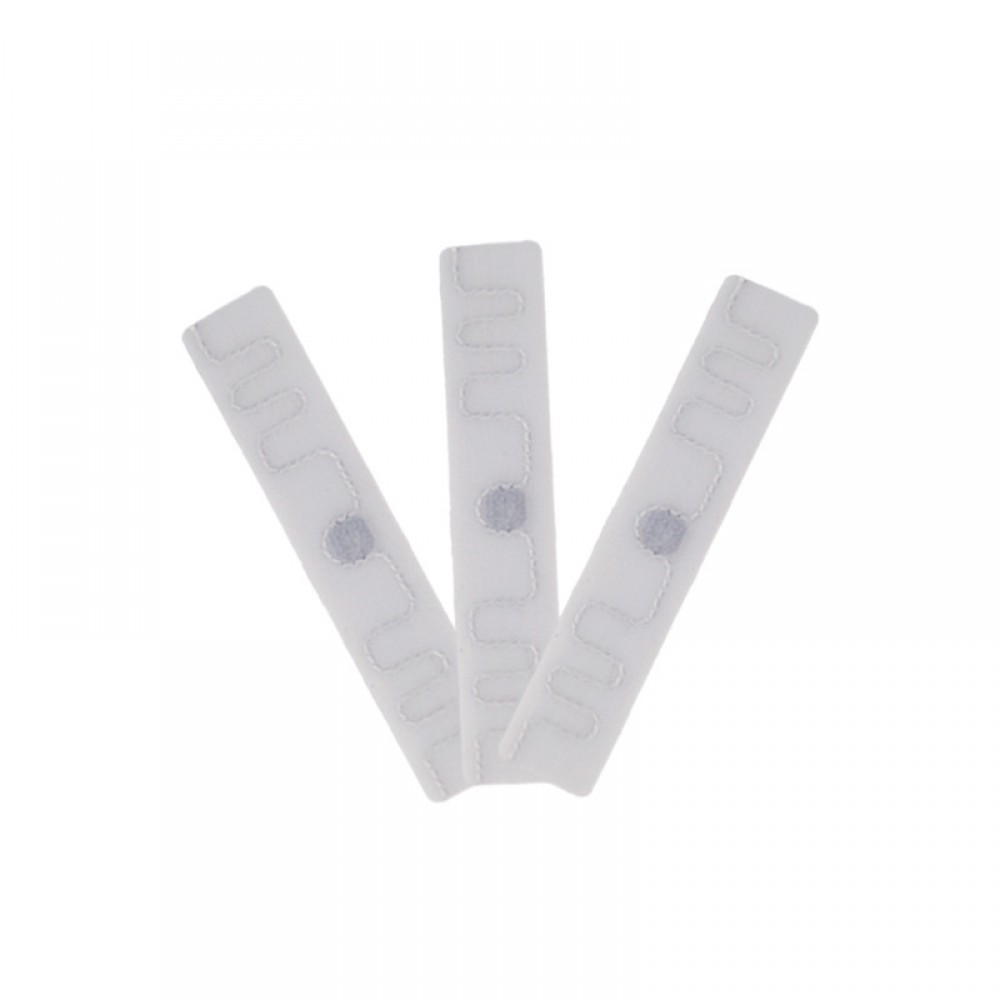

Manufacturer customized UHF RFID laundry label passive long-distance high-temperature resistant sewing laundry fabric tag
Overview
PerformanceProduct nameUHF RFID Laundry TagModel nameTP-L7015MaterialFlexible textileFrequency860-960mhzRoll form2000pcs/rollMounting methodSewingWork...Performance | |
Product name | UHF RFID Laundry Tag |
Model name | TP-L7015 |
Material | Flexible textile |
Frequency | 860-960mhz |
Roll form | 2000pcs/roll |
Mounting method | Sewing |
Work mode | Read and write |
Size | 70*15*1.45mm (the thickness is 2.45mm at chip position) |
Package size | 23*15*10cm |
Weight | 0.61g/piece |
Color: | White (other colors can be customized) |
Supporting agreement | EPC global Class 1 gen 2/ISO 18000-6C |
Chip type | NXP U8, Impinj R6P( can be cutomized) |
Memory | EPC code 128 bits; user storage 512 bits |
Warranty | 1 year or 200 times washes (based on the first item achieved) |
RoHs | support, the material has passed SGS certification |
Label polarization | Linear polarization |
Reading distance | 2-5 meters (related to reader configuration) |
Laundry guide | Washing/dry cleaning |
Water pressure | 60 bar |
Drying | 125℃ for a single time, 15-20 minutes |
Resistance | water resistance;chemical resistance(conventional detergents,softeners,bleaching agents,etc);heat resistance (drying 90℃ maximum 15 minutes, 160℃ maximum 30 seconds. ironing 200℃ 10 seconds) |
High and low temperature alternation test | -40℃~+150℃ high and low temperature alternating cycles, a total of 2 consecutive days passed the test |
Storage time | ＞10 years |
Rewrittable times | ＞100,000 times |
Working Environment | |
Working temperature | -20℃~+50℃ |
Storage temperature | -40℃~+100℃ |
Storage humidity | 20%～90% relative humidity |

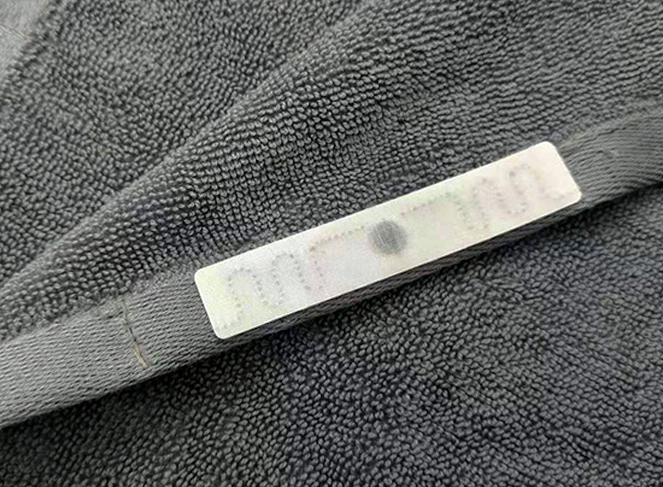

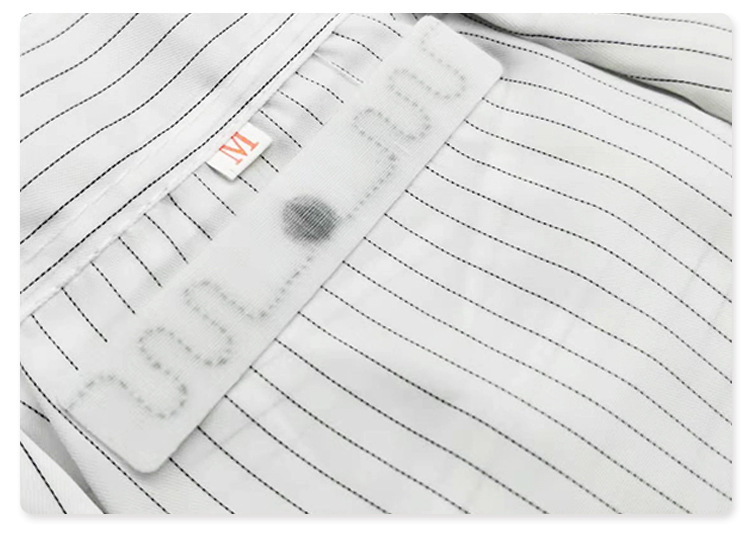

Application | Clothes,linen,garments in hotels,hospitals,factories, etc. |
