long range 860-960MHz long distance UHF RFID book tag sticker for security 30 cm round in warehouse access control
$0.08
Ex Tax: $0.08
Product Code: TP-D30
Stock Instock
Overview
PerformanceProduct nameUHF RFID Adhesive TagModel nameTP-D30MaterialCoated paper/PETFrequency860-960mhzSizeDiameter 30mmPackage size23*15*10cmRoll for....jpg)
Performance | |
Product name | UHF RFID Adhesive Tag |
Model name | TP-D30 |
Material | Coated paper/PET |
Frequency | 860-960mhz |

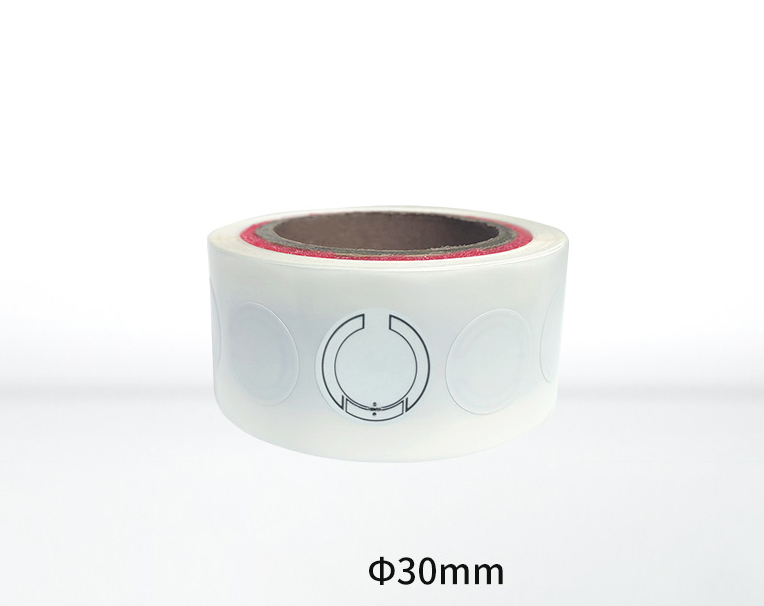

Size | Diameter 30mm |
Package size | 23*15*10cm |
Roll form | 5000pcs/roll |
Jump distance | 25.797mm/1.02" |
Paper tube inner diameter | 76.2mm/3" |
Weight | 2.8kg/roll |
Color | White |
Supporting agreement | EPC global Class 1 gen 2/ISO 18000-6C |
Chip type | Higgs 3, U8 (cutomized) |
Memory | EPC code 96 bits; TID code 64 bits; user storage 512 bits |
Reading distance | About 8 meters / 26.25ft |
Working Environment | |
Working temperature | -40℃~+85℃/ -40°F ~ 185°F |
Storage temperature | -20℃~+50℃/ -4°F ~ 122°F |
Storage humidity | 20%～90% relative humidity |
Shelf life | 20℃~30℃/ 68°F ~ 86°F, 40%～60% relative humidity, sealed in anti-static bag for more than 2 years |
Application | Retail, warehouse,asset,etc. |
