High performance TCP/IP RS232 865-928mhz 16 channel UHF fixed reader impinj R2000 for warehouse assets management
Overview
PerformanceProduct nameUHF RFID fixed readerModel nameAFR-16Frequency865-868mhz or 902-928mhzAir interface protocolEPC global UHF Class 1 gen 2/ISO 18...
Performance | |
Product name | UHF RFID fixed reader |
Model name | AFR-16 |
Frequency | 865-868mhz or 902-928mhz |
Air interface protocol | EPC global UHF Class 1 gen 2/ISO 18000-6C |
RF mode | FHSS or fixed frequency, set by the software |
RF output power | 0-33dBm±1dBm(MAX) |
Flatness of output power | ±0.25dB |

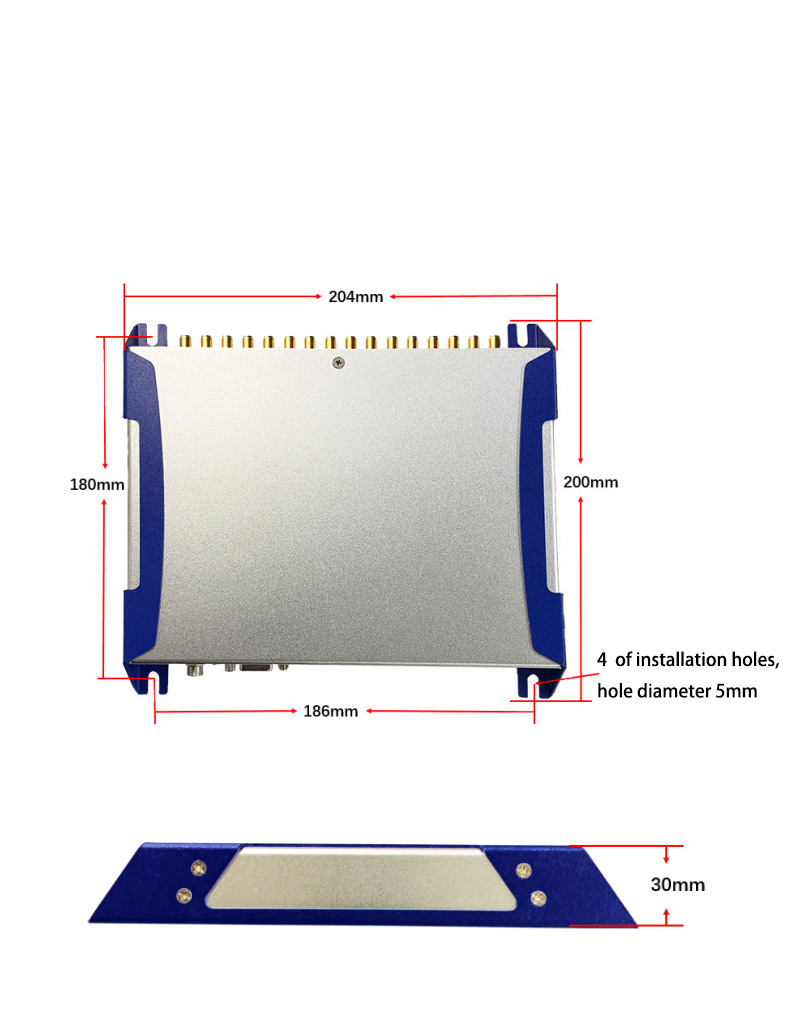

Size | 200*204*30mm |
Input power | DC12V-24V |
Standby state current | 70mA |
Sleep state current | 100uA |
Maximum operating current | 800mA±5%@DC12V input (33dBm) |
Receiver sensitivity | -85dBm |
Peak speed of inventory labels | >700 pcs/sec |

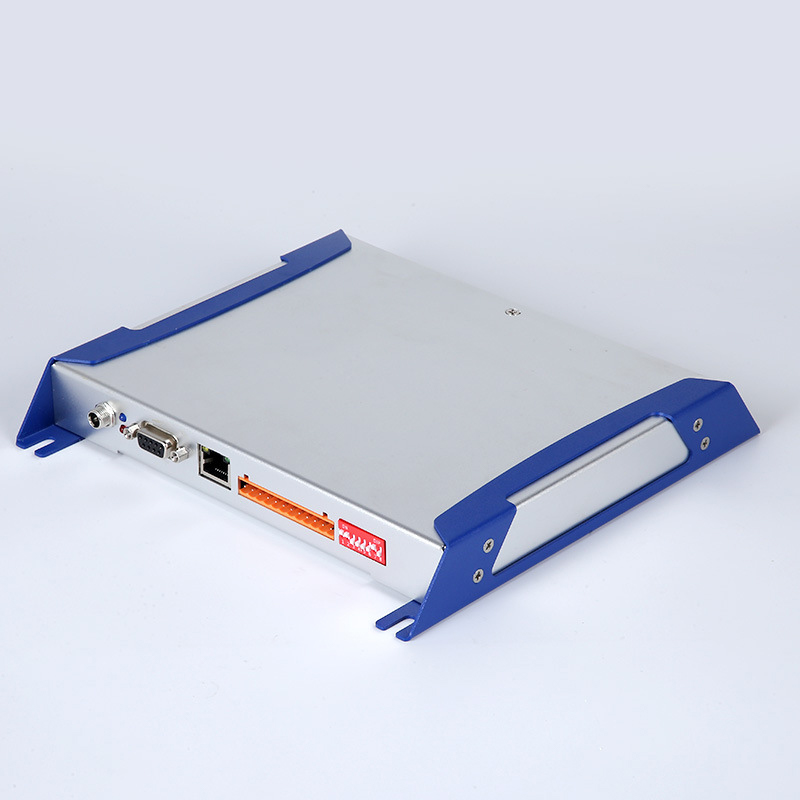

Communication interface | RS232 or TCP/IP |
GPIO | 2 input, 2 output |
Application software interface | Free API SDK |
Read distance | 10 meters (related to tag and environment) |
Antenna shell material | Aluminum |
Color | White blue |
Net weight | 850g |
Package size | 35*35*15cm |
Environment | |
Protection grade | IEC IP65 |
Operating humidity | 5%～95% non-condensing |
Working temperature | -30℃~+70℃ |
Storage temperature | -40℃~+85℃ |
