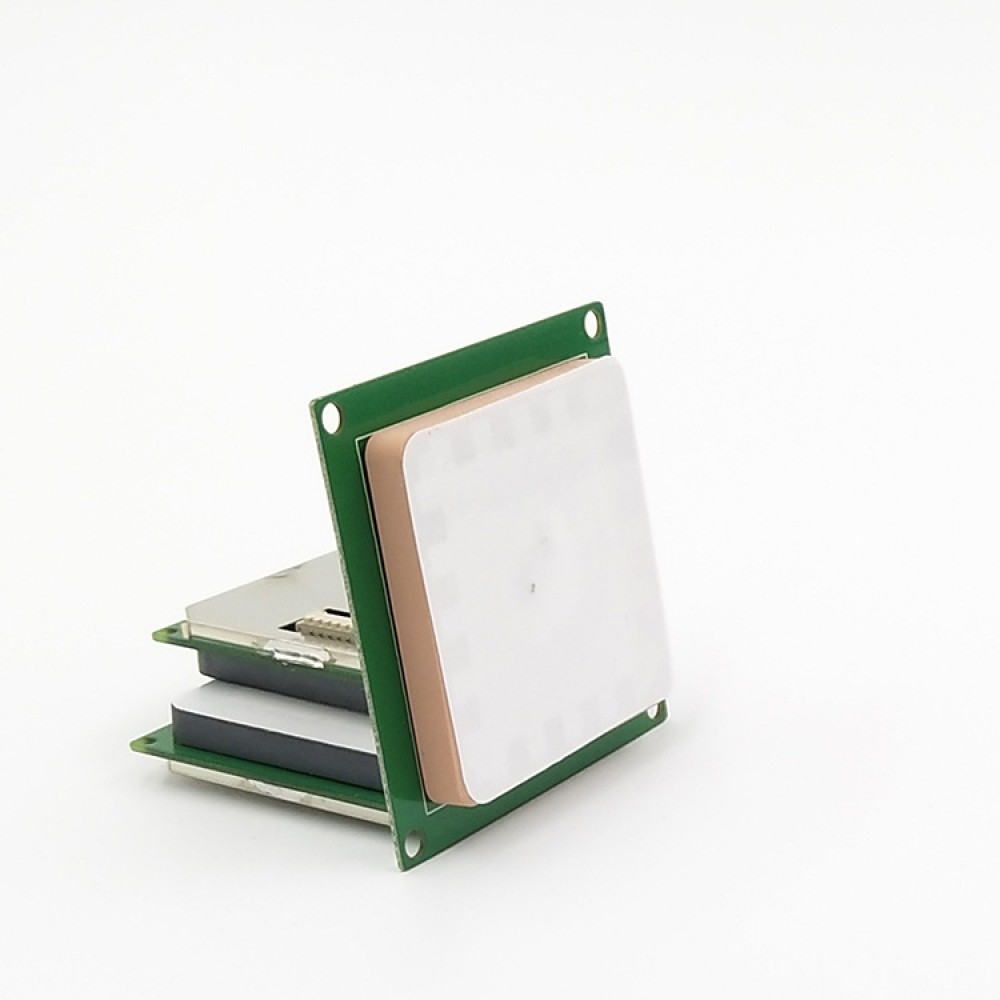

0-3 meter long range UHF RFID reader module good prie free SDK software

Performance

Product name

UHF RFID reader module

Model

AB-60

Frequency

865-868mhz or 902-928mhz (adjustable with different countries and regions)

Communication interface

TTL UART

FM mode

FHSS or fixed frequency, set by the software

Inventory tag peak speed

＞50pcs/second

RF output power

18-26dbm (adjustable by software)

Output power accuracy

+/- 1dB

Flatness of output power

+/- 0.2dB

Reading distance

0-2meters

Standby state current

<80mA (EN pin high level)

Sleep state current

<100uA (EN pin low level)

Voltage

DC 3.5v-5v

RSSI

Support

Tag cache area

200 pcs tag @ 96bit EPC

Start time

<100mS

Net weight

50g

Size

50x50x9.5mm

Package size

12*8*5cm

Standby working current

<25mA (EN pin high level enable)

Sleep working current

<20uA (EN pin low level enable)

Air interface protocol

EPC global UHF Class 1 gen 2/ISO 18000-6C

Baud rate

115200 bps

Receiver sensitivity

< -70dBm

Application

retail, warehouse,library,animal,linen,production line,etc.

Operating current

180mA @ 3.5V (26 dBm Output，25°C)
110mA @ 3.5V (18 dBm Output，25°C)

Working area

USA, Canada and other regions following U.S.FCC
Europe and other regions following ETSIEN 302 208
Mainland china、Japan、Korea、Malaysia、Taiwan

Heat dissipation method

Air cooling (no external heat sink required)

Working Environment

Working temperature

-20℃~+70℃

Storage temperature

-20℃~+85℃

Operating humidity

-20℃~+95℃

Optional

Charging stand
