9dbi 865-928mhz long range UHF RFID integrated reader UHF electronic tag reader for vihicle parking
Overview
PerformanceProduct nameUHF RFID integrated readerModelAIR-09Antenna gain9dbiChipImpinj R2000Antenna polarizationright-handed circular polarizationFreq...Performance | |
Product name | UHF RFID integrated reader |
Model | AIR-09 |
Antenna gain | 9dbi |
Chip | Impinj R2000 |
Antenna polarization | right-handed circular polarization |
Frequency | 865-868mhz or 902-928mhz |
Air interface protocol | EPC global UHF Class 1 gen 2/ISO 18000-6C |
Communication interface | TCP/IP, RS232/RS485 or wiegand26/34, wireless (option) |
Half power lobe width(°) | level:65, vertical plane:60 |
RF mode | FHSS or fixed frequency, set by the software |
RF output power | 0-33dBm±1dBm(MAX) |
Alarm | audible and visual alarm |
Communication rate | RS232 with 9600-115200bps, RJ45 with 10mbps |
Application software interface | Free API SDK |
Read distance | 0.8~10 meters (related to tag and environment) |
Power consumption | average＜10w |
Power supply | 220 AC input, 12V/3A DC power converter output |
Antenna shell material | Aluminum |
Color | White |

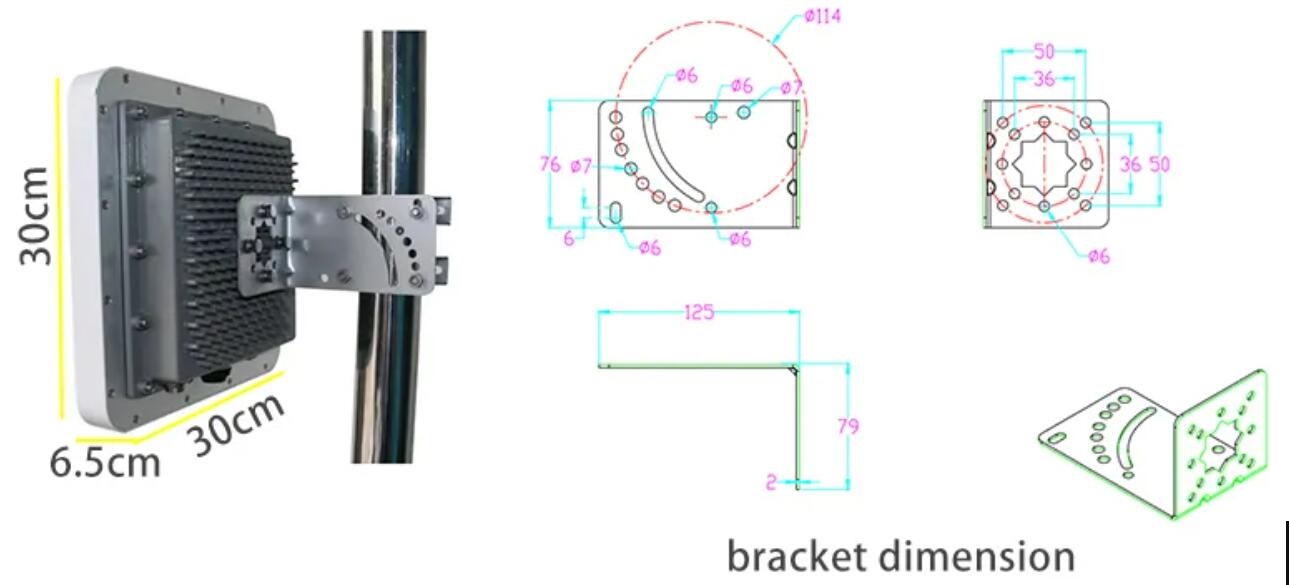

Installation type | pole installation |
Rod hole diameter | 36-50mm |
Lightning protection | DC ground |
SDK language | Java,c＃ |
Net weight | 3kg |
Size | 300*300*65mm |
Package size | 350*350*80mm |
System | Windows OS |
Environment | |
Protection grade | IEC IP65 |
Operating humidity | 5%～95% non-condensing |
Working temperature | -20℃~+60℃ |
Storage temperature | -40℃~+85℃ |
